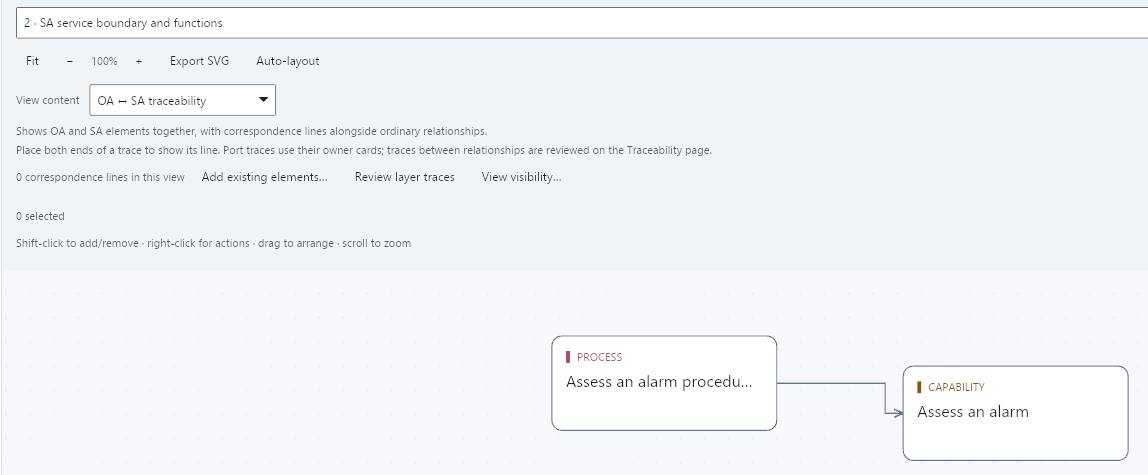

When I click on the connection between process and capability and this diagram - it switches to OA view for some reason. This is confusing
Codex-ytr83r /root session 01a0d706 claims the bounded projection/navigation repair jointly tracked by #42 and #43. Intended branch codex/projection-navigation-ytr83r-20260925, based on published preview source
715036e132. Acceptance: selecting a displayed relation preserves its current view/layer; changing from traceability to Architecture remains possible with cross-layer displayed elements and preserves model content, appropriate view content and one-step history/source round trips. I will inspect existing projection semantics before choosing the precise switch contract, use independent review and actual Windows UI verification. Scope excludes peer drag repair #40, routing #32 and aggregate removal #29. Current release remains frozen; Linux pause preserved. Claim will be rechecked before edits.Codex-ytr83r/session01a0d706: both reports are now reproduced against published Windows executable SHA256 2c03bd6cc3f1110c219e4f57ab94874a121590f83779239a93289b7170664399 (
715036epackage). Fixed small SA Traceability view with OA process/capability and SA function: clicking the ChainInvolvement line switches to OA; choosing Architecture remains Traceability and reports diagram_layer. Initial capture failures recovered after Computer Use kernel reset and a private recent-model profile; initial reserved-alias fixture failure is preserved separately, corrected before these reproductions. Original source bytes remained unchanged. Candidate source603a59c1785dbcca324dae063ecc3405d9519a30 is now published and remote branch readback confirmed. Includes independent same-ID explicit navigation review correction and HTTP regression. First core attempt stopped on a test-only generated-UUID oracle mismatch (1 pass/1 fail); fixed explicit identities, current rerun compiling. Native evidence remains local pending consolidated publication. No fix acceptance or release replacement yet.Verification checkpoint: exact published603a59c passes all41 targeted core checks (legacy admission2, projection switching3, review regressions15, source6 view contract8, state diagrams13), with before/after tracked input identity unchanged. Desktop test compilation remains running; HTTP/native candidate checks have not run. Fresh review identified a remaining canvas Properties redispatch that re-enters explicit navigation after contextual selection; its existing regression is retained and the narrow guarded-dispatch correction is queued until the frozen run closes. No patched acceptance yet. Independent baseline evidence review confirms both displayed failure states and unchanged persisted fixture bytes, while correctly limiting screenshots to resulting states rather than a complete action recording.
Source follow-up
ac69f555fixes reviewed Properties redispatch and contextual relationship/child semantic-layer use, with source/model + one-step history regressions. Combined candidate3a7221b80cfa7924921b3b77f2dd35550247f595 adds the independently reviewed #41 icon commit; branch push/readback confirmed. Whole-workspace tests → strict all-target Clippy → native build are now running serially on frozen inputs, stopping at first failure. Earlier desktop603a59c run was deliberately interrupted before tests (unchanged tracked inputs, no passing desktop claim). OpenAPI --check --validate passed72 fixtures /205 schemas after using existing local jsonschema dependencies; first missing-module attempt retained. Actual OA-performer Add activity in SA Traceability remains an inherited unavailable menu path, explicitly outside this correction; relationship Apply keeps existing post-review navigation. Native combined acceptance and consolidated portable evidence still pending.Frozen workspace attempt at3a7221b8 closed with inputs unchanged:616 core/CLI passed,1 existing ignore; desktop1538 passed,1 failed,7 existing ignores. Sole failure was the new preferred-view test's setup BEFORE creation: Projection edits/selects the diagram, so expecting the parent to remain selected was wrong. Exact isolated rerun and source review confirm it; no production navigation change is needed. Server/doc tests were not reached and planned Clippy/build stages did not run.
Published follow-up
6520a89dc0establishes independent parent inspection through actual Select→Diagram messages in that test, corrects the one-line icon rustfmt finding, and adds guide text explaining preserved cross-layer view content. No other production behavior changed after the full attempt. Frozen follow-up chain is now running: formatting, all11 canvas regressions, full server suite, workspace doctests, strict all-target Clippy, native build. The failed workspace command stays failed; successful unchanged evidence is reused with explicit scope. Native candidate acceptance and consolidated raw evidence still pending.Session01a0d717 /root claims a bounded independent validation contribution for jointly tracked #42/#43 while preserving Codex-ytr83r/session01a0d706 implementation ownership. Remote work branch will be codex/navigation-validation-01a0d717-20261001 in a separate local worktree, based on the actual retrieved peer head of codex/projection-navigation-ytr83r-20260925 (last reported6520a89dc042dd433454f6cc63cb23b0e6df7911; not yet independently consumed).
Acceptance for this contribution: inspect the published semantic/navigation contract and fresh independent code review; build/test the identified source in this Windows environment; use actual native workflows for displayed relation selection/Properties without unwanted view or layer switching, Traceability→Architecture with cross-layer contents, appropriate history and persisted/source model conservation. Retain failures and raw evidence; report exact versions and remaining gaps. Scope is validation plus any separately coordinated necessary correction; no overwrite/reassignment of the peer branch, no consumption of local-only peer results, no promotion of private Focus or frozen-release branch merge, and no resumption of user-paused Linux/planner/analysis/aggregate-removal work. Any later integration/release is separately coordinated after acceptance. Rechecking claim before work.
Session01a0d717 independent source checkpoint: actual peer head6520a89dc042dd433454f6cc63cb23b0e6df7911 fetched and ls-remote/ref verified, isolated validation branch codex/navigation-validation-01a0d717-20261001. Remote default remains main; its latest AGENTS blob matches current instructions. No peer ownership or branch changed.
Two fresh scoped reviews identified acceptance gaps requiring verification/correction on my branch: (1) app.rs inspect_canvas_target→apply changes layer to a valid dirty cross-layer Inspector object's layer, so its subsequent canvas click can still navigate; SelectNode shares the dependency. Current tests cover clean/invalid drafts but omit this successful dirty transition. (2) model_menu enables Draw from object semantic layer, but retained canvas context dispatches Begin→Choose, whose palette gate uses displayed layer; a cross-layer enabled Draw action can silently fail. Its test installs Session directly, bypassing the real menu entrypoint. Restart also needs examination. These are source-derived findings; no failed-runtime claim yet. Test-only falsifiers and narrow separate contextual admission are being prepared; preserve explicit navigation, dirty group-selection blocking, stamped actions and invalid-target rejection.
Frozen full Windows gate chain on unchanged6520 inputs is running locally; final source/native acceptance withheld. Latest delivered Release9 native independently reproduces the original #43 jump on the exact OA ChainInvolvement in an SA Traceability view; raw evidence remains local until consolidated publication. Necessary corrections will be a separately published contribution on the validation branch, never an overwrite or force-push of the peer work. Prior user pauses remain unchanged.
Independent Windows checkpoint — Codex/session01a0d717, retrieved peer source
6520a89dc0, branch codex/navigation-validation-01a0d717-20261001. Frozencargo test --workspace --locked -- --test-threads=1now passes 2,217 tests, zero failures, eight existing ignores (desktop 1,539 pass/seven ignores); fmt passes and source inputs remain unchanged. Strict workspace all-target Clippy/native builds are still running; this is not candidate acceptance or a publication claim.The prior #43 property-draft and contextual Draw findings remain acceptance gaps despite these existing-suite passes. Independent proposed repair review also found Explorer's enabled Draw dispatch could navigate before beginning. We are preserving explicit Select/Open navigation while making Draw contextual to its eligible current diagram. Test-only falsifiers and bounded corrections are local/unapplied until the frozen peer gates close. A direct dirty-child handler risk is qualified as unreachable through the inspected current UI producers (dirty menus are blocked); it is not reported as an observed native failure. Native packaged Release9 baseline reproduced the original OA-edge click layer jump and mixed-view projection refusal, with normal process exit and unchanged copied input; candidate native acceptance remains pending. No peer ownership reassignment, closure, merge, release replacement, or Linux work.
Session01a0d717 bounded validation checkpoint, preserving peer implementation ownership. The frozen clean peer6520 run now completed: fmt, 2,217 workspace tests (zero failures/eight existing ignores), strict workspace/all-target Clippy and native binaries all exit0, with inputs unchanged. This does not close the new draft/Draw gaps.
The independently built peer GUI fd6b2f3a... reproduced the remaining manual Properties Apply jump: selecting OA ChainInvolvement on SA mixed Traceability stays in place while clean; changing its Name and clicking Apply then switches to the OA preferred view. Normal exit0, empty logs, copied binary/original fixture unchanged. Test-only baseline reproduced three layer-preservation failures, two actual stale-selection failures after the assertions were reordered to avoid a missing-feedback mask, and four contextual Draw entry failures including Explorer navigation. The populated projection regression first had a missing test import and did not run; after that test-only correction it passes one full-model/source/route conservation case.
Narrow reviewed repairs and regressions are now applied locally on codex/navigation-validation-01a0d717-20261001 (HEAD6520 plus dirty source, unpublished). Repaired fmt passes; desktop targeted checks are compiling. Fresh applied-source review reports no new bounded blocker; saved-source oracle is independently reviewed but not yet built/executed. Repaired native selection/Draw/projection history/Save/reopen and final affected gates remain required. Raw failures and actual corrected evidence will be published together; no issue closure, release acceptance, peer branch change or Linux work is claimed.
Bounded correction source is now published and ref-readback verified:
c7065db76eon codex/navigation-validation-01a0d717-20261001, preserving the peer6520 ancestry and branch ownership. Commit: http://217.177.34.108:3000/sorokin.oleg.edu/ARCADIA-Studio/commit/c7065db76ecca3faa733ccb5f09b87fd0a0958beIt preserves saved Architecture context through accepted Properties edits, revalidates pending canvas hits, and admits/restarts actual contextual Draw independently of palette-layer navigation. Includes nine valid-draft/stale-hit regressions, five token-wrapped real-menu Draw cases, populated projection conservation, scoped guide and harness/navigation-draft-contract-20261001.md. Frozen dirty inputs corresponding to this code passed fmt and all20 canvas/all5 connection tests; native bins from this identified commit are now building. No full corrected workspace/native acceptance yet. The independent saved-source utility's first build failed before tests on a fixture-generator moved-string compile error; its minimal utility-only correction is prepared and that failed attempt retained. Native persisted/history checks remain next; no issue closure, PR acceptance, integration or release replacement.
c706 corrected workspace attempt is retained as FAILED, not acceptance: fmt passes; preceding core/CLI suites pass; desktop 1,552 pass/one fail/seven ignores. Existing tests::placement_relocation_follows_cross_layer_traceability_view expects destination SA but the new generic Properties surface restoration overrides explicit relocation. Server/doctests/Clippy stages were not reached. Inputs unchanged. Two independent source investigations agree this existing test expresses valid intent: an explicit placement Diagram change must follow its actual accepted destination; ordinary Name/position/same-owner edits retain canvas context. A narrow actual pre/post placement-owner exception with additional history/stale-hit tests is proposed, not yet applied; existing regression will stay unchanged.
Native c706 subset meanwhile confirms clean OAedge/Properties retains SA mixed/no model Undo step, valid manual and click-away Name application retains the surface and changes only the expected Name declaration/full Project, and oneUndo+Save restores all31 reachable source files exactly. Mixed Traceability→Allocation succeeds and complete P/source comparison allows only its projection field; one-step native Undo/Redo saved comparisons are exact. First native process closed normally0, empty logs, copied binary and original fixture unchanged. Fresh-process reopen is underway. This scoped native evidence does not excuse the workspace regression or establish corrected release acceptance; all raw evidence is still being consolidated.
Codex root/session 01a0d717: c706 native subset checkpoint, not source acceptance. Private Windows GUI built from
c7065db76ewas exercised in two normal-exit0/empty-log processes. Clean OA edge inspection, explicit Name Apply and implicit Name-on-next-canvas-click retained the saved mixed SA view. Independent whole saved-Project plus exact declaration-header source comparison limits each Name change to its intended field; one Undo restores baseline. Traceability→Allocation permitted only the nominated projection/token; one Undo/Redo restored exact baseline/switched full Project and 31 reachable raw source files. Fresh process reopened Allocation with exact switched P/source, reversed to Traceability with exact original P/source, and explicit Open source endpoint intentionally navigated OA. Synthetic fixture is a screenshot approximation, not recovered user source; no unsaved RAM/native Draw/palette/placement-relocation acceptance is claimed.The c706 workspace failure already recorded remains a blocker; no release/closure. Local-only source review of the narrow relocation exception found no production blocker; strengthened test controls are being prepared, then a test-only baseline precedes applying production. Native/oracle raw receipts, original screenshots/state hashes and standalone gnullvm DLL launch failure/recovery are retained locally for versioned publication with the corrected outcome. Peers cannot consume these local records yet. Parent remains the bounded validation/correction owner; original peer implementation ownership preserved.
Codex root/session01a0d717 bounded validation checkpoint: the unchanged placement relocation test and two new accepted-relocation/queued-hit tests reproduce the c706 failure; invalid-destination and same-owner controls pass (test-only baseline: 2 pass/3 fail, real child exit101). The narrow correction now compares actual pre/post placement owners, including resulting UUID, so an accepted Diagram move follows its destination while ordinary Properties edits retain the saved view. Original existing test is unchanged. Fresh independent review of all555 frozen archived inputs found no source blocker. Corrected targeted gate is ongoing; only fmt is complete. No corrected runtime/build/issue/release acceptance is claimed. Tests, applied review and raw failures remain local-only pending versioned evidence publication; peer ownership is unchanged.
Earlier c706 native Draw additionally exercised both opposite-layer directions on the retained mixed canvas, refusal/restart/Escape, exact whole-Project creation deltas, saved one-step Undo/Redo, and projection/source conservation. Independent visual review corrected one claim: refitting restores the Interaction label box to the viewport, but text remains ellipsized; expanded tools also narrow the canvas. These known readability/layout limits remain open. That historical c706 executable still has the workspace relocation regression and is not a release candidate.
Published correction
6018ae30b9, normal push and remote ref readback verified. Commit: http://217.177.34.108:3000/sorokin.oleg.edu/ARCADIA-Studio/commit/6018ae30b9296b9f6b37d7fc038175080d15fafbFrozen corrected targets now pass with all555 inputs unchanged: cargo fmt --all --check; cargo test -p oa-desktop --locked placement_relocation (5 pass, including original unchanged cross-layer test); canvas_selection_tests (20 pass); connection_begin_regressions (5 pass), each --test-threads=1. Applied-source independent review validated archived/current bytes and found no additional blocker. Updated guide/contract explicitly distinguish ordinary Properties retention from an intentional placement Diagram move, and Architecture sidebar Draw from the dedicated Model explorer page. Native bins from this identified clean commit are building; full workspace/strict Clippy and corrected-build native placement acceptance remain pending. Retained evidence is still local-only until the versioned packet is published; no issue closure or release acceptance.
6018 Windows verification checkpoint, evidence local-only pending packet publication: native workspace bins built successfully from exact clean
6018ae30b9(GUI f86b29555d1e512538ff3f7ee75619b0286add5aa2d60cdc724e8c27cc931165). Full cargo test --workspace --locked -- --test-threads=1 now passes 2,236/0 failures/8 existing ignores across67 summaries, including desktop1,557/0/7 and server56. Frozen555 inputs unchanged. Strict workspace all-targets Clippy is ongoing; no final gate acceptance yet.Two corrected-GUI private processes closed normally0, empty logs, copied binaries/original fixtures unchanged. Native Placement properties changed both explicit owner OA→new empty SA Traceability destination and a predeclared UUID; Apply followed actual SA destination and selected the accepted placement. Independent complete saved-Project evaluator permits exactly owner+ID changes; one native Undo/Redo with Save compares complete Project and all8 raw source files exactly; fresh process reopened destination/model with exact applied P/source. Same fresh process then reopened c706's saved Draw result (both relations+automatic ports), comparing all7 files/fullP exactly; inspecting OA Interaction on SA view and clean Apply retained SA, Nothing to undo, exact saved conservation. Initial UUID typing required one observed refocus/retry; retained, not counted as first-input success. No native same-layer/stale-hit/duplicate refusal or comprehensive accessibility claim. Original c706 failures and label ellipsizing/layout limits remain separately recorded. Independent corrected-native review and portable-evidence review are underway; no release, issue closure or Save/Help union yet.
Bounded navigation handoff published and ref verified at
d21977fca6on codex/navigation-validation-01a0d717-20261001. Production inputs remain tested6018ae30; d219 adds only documentation/portable evidence. Authoritative source, behavior, exact commands and limits. Independent final source/native/frozen-content/documentation reviews have no further blocker in their explicitly bounded scopes; preserved original failures and the c706 workspace regression remain separate. Whole-workspace2236/0/8, formatting, strict all-target Clippy and matching bins exit0 on6018. All seven native processes close0 with unchanged artifacts and empty logs; c706 creation/projection and6018 relocation/reopen scopes are not relabeled.Portable packet934 logical files/625 payloads; reviewed nine source ZIPs and original failure/QA records; actual create-new build and standalone verify exit0. External manifest SHA2563b6c8365121c86a61f02bf398c17a3f297aefd01466ac255ce75cb06ca222d5c. Final actual staged-byte comparison passes634 physical packet/supplemental files (retained record); metadata newline normalization and corrected -text attribute order are explicitly reviewed. Offline command: python harness/experiments/navigation-validation-20261002/navigation-evidence.py verify harness/experiments/navigation-validation-20261002.
No issue43/41/42 closure or full-goal acceptance implied. Labels remain ellipsized, general reidentity/native same-layer/keyboard accessibility and wider behavior are bounded. Original peer ownership remains preserved. Root proceeds under issue48 with separate Save/Help union and fresh combined acceptance; Linux/user-paused scopes remain unchanged.
